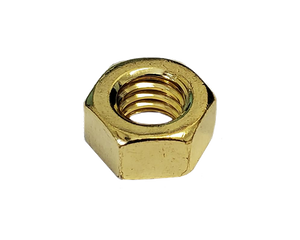

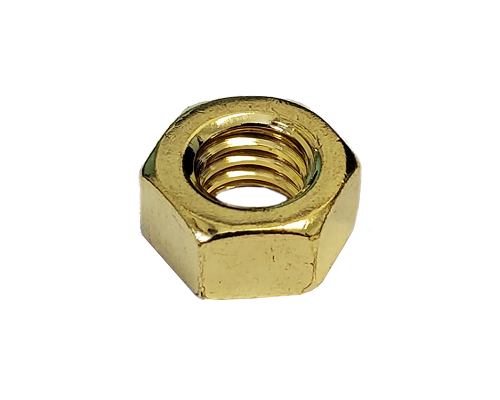

Imperial Hexagonal Nut yellow Zinc Plated 3/8-16 Grade 8

Imperial Hexagonal Nut yellow Zinc Plated 3/8-16 Grade 8

Regular price 0.33 $ CAD
Regular price 0.21 $ CAD Sale price 0.33 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal nut fit a threading of 3/8-16. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

View full details

Specifications

Product Number E8-03000
Nominal Diameter 3/8-16
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial

Thread Specifications

Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Fit Class 5g6g

Nut Specification

Type Hexagonal
Profile Standard
Diameter 9/16"
Height 21/64"
Drive Style External Hex

Strength Specifications

Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B18.2.2
