Specifications
Product Number | EE5-01000 |
Material | Steel |
Finish | Zinc Plated |
Fastener Strength Grade/Class | Grade 5 |
Thread Size | 1/4"-20 |
Thread Type | UNC |
Thread Spacing | Coarse |
Thread Fit | Class 2B |
Thread Direction | Right Hand |
Width | 7/16" |
Height | 15/64" |
Flange |
|
Diameter | 19/32" |
Thickness | 0.04" |
Drive Style | External Hex |

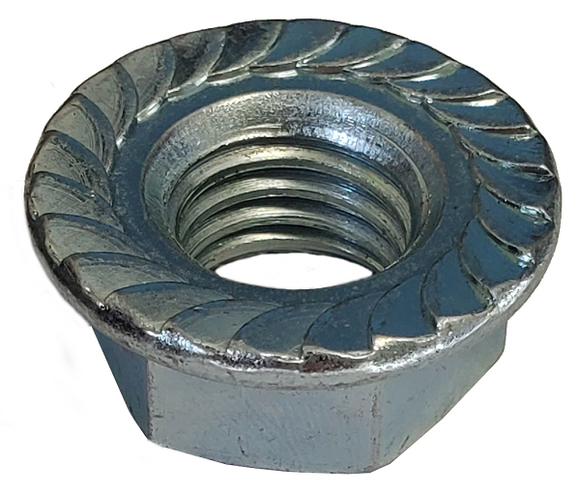

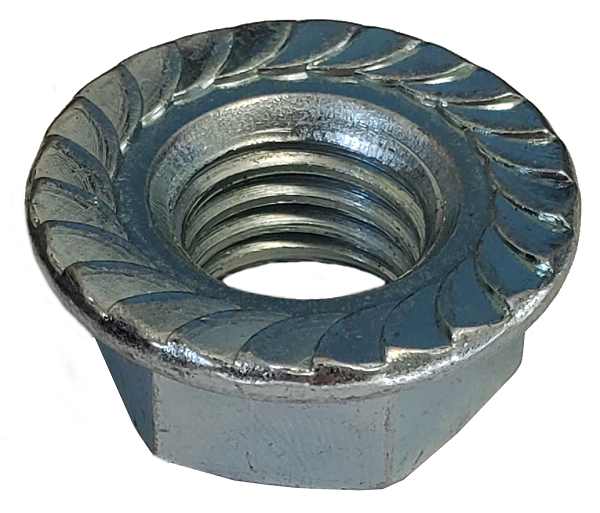

Nut Type | Flange, Locknut |
Hex Nut Profile | Standard |
Locking Type | Serrations |
System of Measurement | Inch |
RoHS | Compliant |
