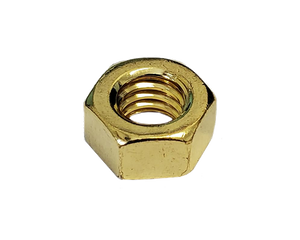

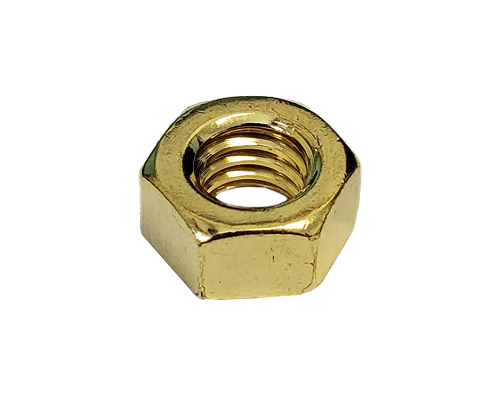

Imperial Hexagonal Nut yellow Zinc Plated Fine Thread 1/2-20 Grade 8

Imperial Hexagonal Nut yellow Zinc Plated Fine Thread 1/2-20 Grade 8

0.93 $ CAD
0.82 $ CAD 0.93 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal nut fit a threading of 1/2-20. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNF | Fine threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

View full details

Specifications
Product Number EF8-05000
Nominal Diameter 1/2-20
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial

Thread Specifications
Type UNF | Fine
Direction Right Hand
Size 1/2-20
Fit Class 5g6g

Nut Specification
Type Hexagonal
Profile Standard
Diameter 3/4"
Height 7/16"
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B18.2.2
