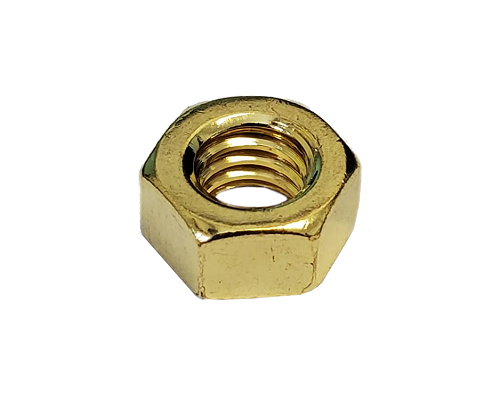

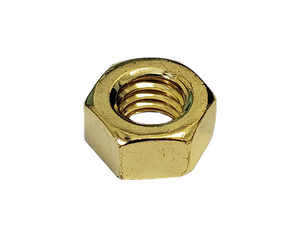

Imperial Hexagonal Nut yellow Zinc Plated Fine Thread 1-1/4-12 Grade 8

Imperial Hexagonal Nut yellow Zinc Plated Fine Thread 1-1/4-12 Grade 8

Regular price 6.74 $ CAD
Regular price 7.57 $ CAD Sale price 6.74 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal nut fit a threading of 1-1/4-12. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNF | Fine threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

View full details

Specifications

Product Number EF8-12000
Nominal Diameter 1-1/4-12
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial

Thread Specifications

Type UNF | Fine
Direction Right Hand
Size 1-1/4-12
Fit Class 5g6g

Nut Specification

Type Hexagonal
Profile Standard
Diameter 1-7/8"
Height 1-1/16"
Drive Style External Hex

Strength Specifications

Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B18.2.2
