Hexagonal Nut Nylon Insert Fine Thread Yellow Zinc Plated 7/8-14 Grade 8

Hexagonal Nut Nylon Insert Fine Thread Yellow Zinc Plated 7/8-14 Grade 8

3.74 $ CAD
6.70 $ CAD 3.74 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

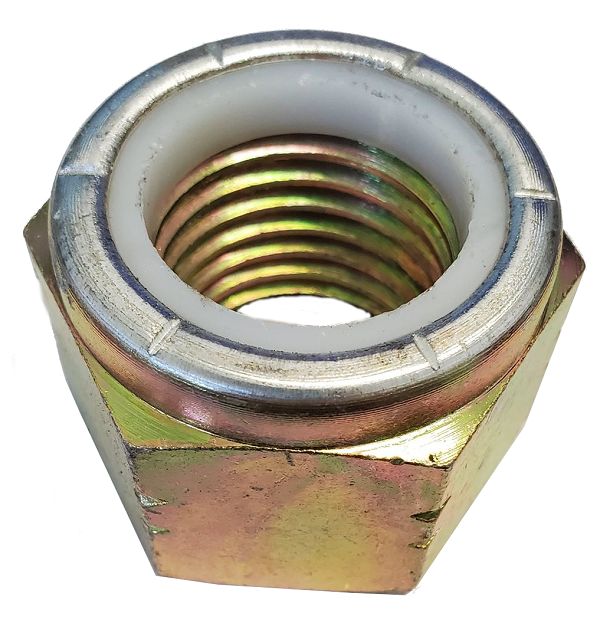

A nyloninsert grips the bolt to resist loosening without damaging threads. These nuts are reusable, but their holding power lessens with each use. Made from Grade 8 steel, they'reabout 25%stronger than medium-strength steel locknuts. The nuts are colored yellow.

White Nylon locknuts resist corrosion in wet environments.




View full details

Specifications
Product Number EF8Y-09000
Material Steel
Finish Zinc Yellow-Chromate Plated
Fastener Strength Grade/Class Grade 8
Thread Size 7/8"-14
Thread Type UNF
Thread Spacing Fine
Thread Fit Class 2B
Thread Direction Right Hand
Width 1 - 1/4"
Height 63/64"
Insert Maximum Temperature 220° F
Drive Style External Hex
Nut Type Locknut
Hex Nut Profile Standard
Locking Type Nylon Insert
System of Measurement Inch
RoHS Not Compliant
