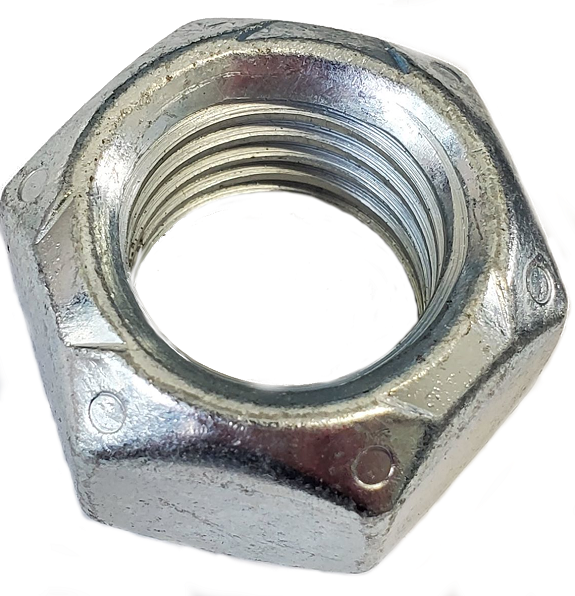

Conical Hexagonal Nut Fine Thread Zinc Plated 3/8-24 Grade 8

Conical Hexagonal Nut Fine Thread Zinc Plated 3/8-24 Grade 8

Regular price 0.64 $ CAD
Regular price Sale price 0.64 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

An irregularlyshaped thread at the top of the nut grips the bolt for a stronger hold than nylon-insert locknuts. They thread on from the bottom of the nut, allowing more threads to engage the bolt before tightening for easier installation than center-lock distorted thread locknuts. The strength of the bolt should match the strength of the nut to prevent damaging threads. They'renot reusable. Comparable in strength to Grade 8 bolts, they'reabout 25%stronger than medium-strength steel locknuts. The nuts have a thread of 3/8-24.




View full details

Specifications

Product Number EFQ8-03000
Material Steel
Finish Zinc Plated
Fastener Strength Grade/Class Grade C
Thread Size 3/8"-24
Thread Type UNF
Thread Spacing Fine
Thread Fit Class 2B
Thread Direction Right Hand
Width 9/16"
Height 21/64"
Drive Style External Hex
Nut Type Locknut
Hex Nut Profile Standard
Locking Type Distorted Thread
Distorted Thread Type Top Lock
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) noncompliant
