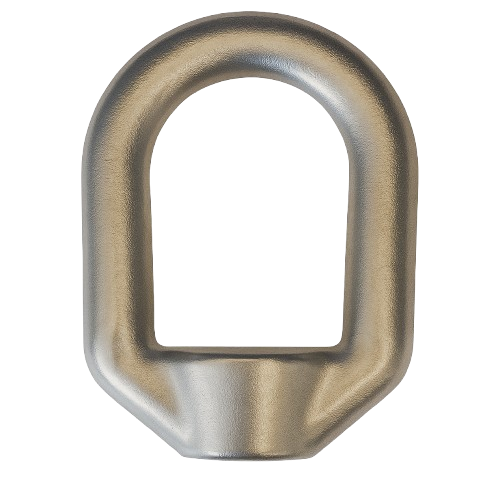

Eye nut Hot Dip Galvanized 1/2-13 * 1-1/4

Eye nut Hot Dip Galvanized 1/2-13 * 1-1/4

Regular price 5.78 $ CAD
Regular price 7.57 $ CAD Sale price 5.78 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



Create your own lifting eye by adding an eye nut to a stud or bolt.

Galvanized steel eye nuts have a hot-dipped finish for more corrosion resistance than zinc-plated steel. The nuts have a thread of 1/2-13 and a lenght of 1-1/4.

Note: Working Load Limit applies to the eye nut only. The stud or bolt you use will affect the overall Working Load Limit. Eye nuts are for vertical lifting only.

Warning: Never use to lift people or items over people. Nuts have a load capacity of 2250 lbs.

View full details

Specifications

Product Number EOG-05012
Application For Lifting
Body Style Eye Nut
Thread Size 1/2"-13
Overall Length 2 1/2"
Eye Diameter 1 1/4"
Vertical Working Load Limit 2,250 lbs.
Eye Style Closed
Eye Shape Oval
Material Galvanized Steel
Threading Fully Threaded
Movement Rigid
RoHS RoHS 3 (2015/863/EU) compliant
