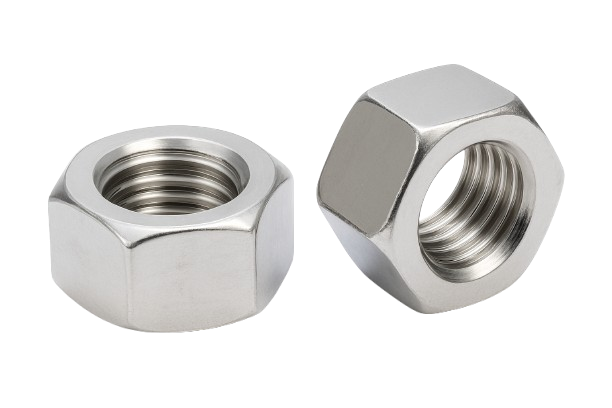

Imperial Hexagonal Nut 304 Stainless Steel 5-40 External Hex

Imperial Hexagonal Nut 304 Stainless Steel 5-40 External Hex

0.19 $ CAD
0.16 $ CAD 0.19 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal nut fit a threading of 5-40. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

View full details

Specifications
Product Number ES-00500
Nominal Diameter 5-40
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial

Thread Specifications
Type UNC | Coarse
Direction Right Hand
Size 5-40
Fit Class 5g6g

Nut Specification
Type Hexagonal
Profile Standard
Diameter 5/16"
Height 7/64"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B18.2.2
