Low Pressure Threaded Elbow Pipe Fitting Stainless Steel 1/2-14 * 90° [Male x Female NPT]

Low Pressure Threaded Elbow Pipe Fitting Stainless Steel 1/2-14 * 90° [Male x Female NPT]

13.02 $ CAD
13.02 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Also known as Class 150 fittings, they are built for use in low-pressure applications. They adhere to high-quality standards for heat treating, material thickness, and marking.

304 stainless steel fittings have very good corrosion resistance.

Female × male 90° elbow adapters are also known as street elbows.

View full details

Specifications
Product Number MCOUDES-05090-FNPT
For Use With Air, Natural Gas, Oil, Steam, Water
Shape 90° Elbow
Type Adapter
Material 304 Stainless Steel
Class 150
Fabrication Heat Treated
Connection Type Pipe
Connection Style Threaded
Connection NPT Female × NPT Male
Pipe Size 1/2

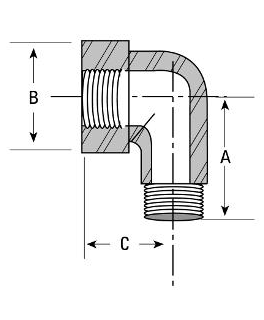

Height (A) 1-11/16
Height (B) 1-1/2
Length (C) 1-1/4
Maximum Pressure 150 psi @ 72° F
Maximum Steam Pressure 150 psi @ 360° F

For Pipe
Schedule 40
Material 304 Stainless Steel

For Flange
Class 150
Material 304 Stainless Steel
Specifications Met ANSI/MSS SP-114, ASTM A351
Features PTFE Thread Sealant
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
