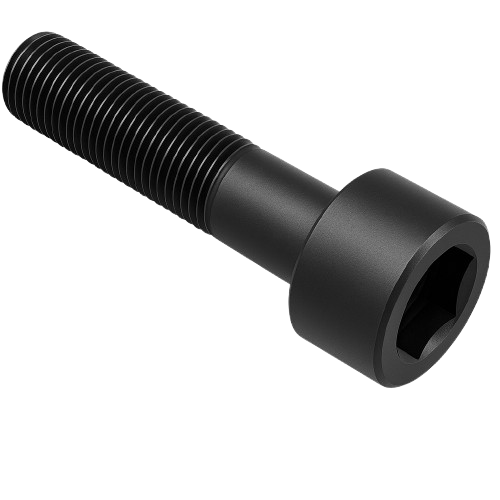

Socket Head Cap Screw Black Steel 4-40 * 1-1/2" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Black Steel 4-40 * 1-1/2" Grade 8 [Cup Point] [Allen Drive]

0.59 $ CAD
0.56 $ CAD 0.59 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 8 steel screws. Length is measured from under the head.

Black-oxide steel screws are mildly corrosion resistant in dry environments.

Coarse threads are the industry standard: choose these screws if you don’t know the pitch or threads per inch.

Screws that meet ASTM A574, ASTM A574M, and ISO 898-1 comply with specifications and testing requirements for material quality.

View full details

Specifications
Product Number VPC-00415
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 4-40
Screw Size Decimal Equivalent 0.112"
Thread Type UNC
Thread Fit Class 3A
Length 1-1/2"
Threading Partially Threaded
Min. Thread Length 3/4"
Thread Spacing Coarse

Head
Diameter 0.183"
Height 0.112"
Drive Size 3/32"
Material Black-Oxide Alloy Steel
Fastener Strength Grade/Class Grade 8
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
RoHS 3 (2015/863/EU) Compliant
