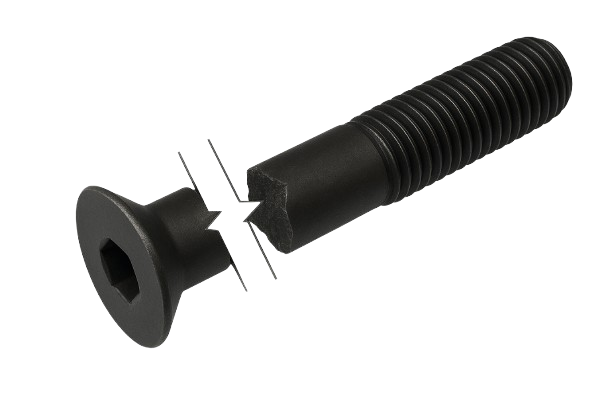

Metric Flat Head Cap Screw Black-Oxide Alloy Steel Partial Thread M6 * 1.0 * 70mm Grade 12.9 [Allen Key]

Metric Flat Head Cap Screw Black-Oxide Alloy Steel Partial Thread M6 * 1.0 * 70mm Grade 12.9 [Allen Key]

1.69 $ CAD
1.69 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download
Product Number VPFM-06070
Nominal Diameter M6 * 1.0
Length 70mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric
Thread Specifications
Threading Partially Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M6 * 1mm
Fit Class 5g6g
Head Specifications
Type Flat
Profile Standard
Diameter 12.00mm
Height 3.30mm
Drive Style Allen Key
Drive Size 4.00mm
Strength Specifications
Strength Grade/Class Grade 10.9
Tensile Strength | Hardness 150,000 psi | Rockwell C32
Shear Strength 90,000 psi
Classification DIN 7991

This flat head cap screw has a length of 70mm with a threading of M6 * 1mm [Fully Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 10.9 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C32. Furthermore, it features a shear strenght of 90,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.
