Specifications

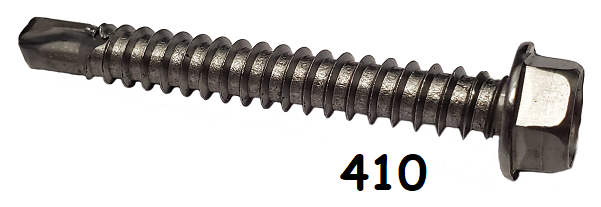

Product Number | VTAHS-10007 |
Material | 410 Stainless Steel |
Screw Size | No. 10 |
Screw Size Decimal Equivalent | 0.19" |
Length | 3/4" |
Drill Tip |
|
Type | No. 3 |
Length | 1/4" |
Maximum Drilling Thickness | 0.15" |
Head |
|
Width | 0.313" |
Height | 0.151" |
Flange Diameter | 0.414" |
Drive Style | External Hex |
Approximate Threads per Inch | 16 |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Tapping Method | Thread Forming |
Tapping Screw Type | BSD |
Head Type | Hex |
Hex Head Profile | Standard |
Tip Type | Drilling |
Shank Cross Section | Round |
Screw Features | Flanged |
System of Measurement | Inch |
For Use In | Steel, Stainless Steel, Sheet Metal |
RoHS | RoHS 3 (2015/863/EU) compliant |
