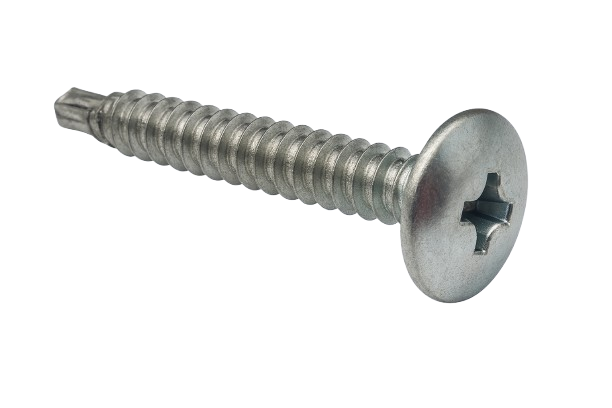

Extra-Wide Rounded Head Drilling Screw Zinc #8 * 3/4" [Philips Drive]

Extra-Wide Rounded Head Drilling Screw Zinc #8 * 3/4" [Philips Drive]

0.17 $ CAD
0.17 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


The extra-wide truss head distributes holding pressure to reduce the risk of crushing thin metal. Use these screws to secure metal wire to steel framing. They save you time and effort by drilling their own holes and fastening in a single operation. Made from steel, they have a zinc plating to resist corrosion in wet environments. Length is measured from under the flange. Head height includes the flange.

View full details

Specifications
Product Number VTTA-08007
Material Zinc-Plated Steel
Screw Size No. 8
Screw Size Decimal Equivalent 0.164"
Length 3/4"

Drill Tip
Type No. 2
Length 3/16"
Maximum Drilling Thickness 0.098"
Head Height 0.097"
Flange Diameter 0.44"
Drive Size No. 2
Drive Style Phillips
Approximate Threads per Inch 18
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type BSD
Head Type Rounded
Rounded Head Profile Wide
Rounded Head Style Truss
Tip Type Drilling
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Steel, Sheet Metal
RoHS RoHS 3 (2015/863/EU) Compliant
REACH Not Compliant
DFARS Specialty Metals COTS-Exempt
